The Stainless Steel Dutch Weave Mesh is crafted using Dutch weaving technology, characterized by a unique mesh structure and ultra-high filtration precision. With fine weaving and a range of mesh counts, this mesh is particularly suitable for precision filtration of liquids and gases, as well as for the screening of various particles in industrial applications. Made from high-quality stainless steel wire (such as SUS304, 316, 316L), it offers excellent corrosion resistance and mechanical strength. We provide custom cutting services in various shapes and sizes based on customer requirements, making it adaptable for different application scenarios.
1. Versatile Mesh Count Options: Available in mesh counts ranging from 100 to 3600, meeting needs from coarse particle screening to fine filtration.
Unique Weave Structure: Utilizes Dutch Weave, with different diameters for warp and weft wires, resulting in higher mesh density and improved filtration precision and mechanical strength.
2. Excellent Corrosion Resistance: Stainless steel construction offers superior corrosion resistance, making it suitable for use in acidic, alkaline, and saline environments, ideal for long-term use.
3. High Filtration Efficiency: The fine weaving and small mesh openings achieve a balance between effectively separating fine particles and maintaining good flow, providing excellent filtration performance.
4. Structural Stability: With diverse wire diameters and the strength of stainless steel, this mesh has good load-bearing capacity and remains stable under high-pressure environments without deformation.
5. Flexible Customization: We offer custom cutting in various sizes and shapes based on specific customer requirements, making it suitable for complex industrial environments or equipment.
| Mesh Count Range | 100 mesh - 3600 mesh |
| Wire Diameter Range | 0.015 mm - 1 mm |
| Weaving Type | Plain Dutch Weave, Twill Dutch Weave |
| Material | SUS304, 316, 316L stainless steel |
| Shape & Size | Custom cutting available, including circular, rectangular, ring, and other special shapes, as per customer requirements. |
| 24 × 110 Mesh | |
| Warp Wire Diameter | 0.035 mm |
| Weft Wire Diameter | 0.025 mm |
| 100 Mesh × 800 Mesh | |
| Warp Wire Diameter | 0.10 mm |
| Weft Wire Diameter | 0.07 mm |
| Feature | Relatively large mesh opening, suitable for coarse filtration to remove large particles, used in mining and rough liquid filtration. |
| 200 Mesh × 1400 Mesh | |
| Warp Wire Diameter | 0.7 mm |
| Weft Wire Diameter | 0.04 mm |
| Feature | Medium mesh count design offers good fluid flow and balanced filtration performance, ideal for general filtration in chemical and oil industries. |
| 500 Mesh × 3600 Mesh | |
| Warp Wire Diameter | 0.025 mm |
| Weft Wire Diameter | 0.016 mm |
| Feature | Extremely high precision, suitable for applications that require strict filtration accuracy, such as pharmaceutical and laboratory environments. |
1. Chemical Industry: Used for precision filtration of various acidic and alkaline solutions to ensure product purity.Oil and Gas: Used for liquid separation and filtration in oil refining and natural gas processing.
2. Pharmaceutical Industry: Applied in pharmaceutical production for high-precision liquid filtration, ensuring drug purity and sterile standards.
3. Food and Beverage: Suitable for filtration of products like milk and juice, ensuring food safety and quality.
4. Water Treatment Systems: Used for filtration of industrial wastewater and drinking water to ensure compliance with water quality standards.
5. Customized Applications: Offers Dutch weave mesh in different sizes and shapes for specific equipment and custom applications, such as non-standard filters.
1. High Temperature & Oxidation Resistance: Can be used in high-temperature and corrosive environments, suitable for various industrial conditions.
2. Easy to Clean & Reusable: Stainless steel is easy to clean, and due to its high strength, the mesh can be reused multiple times without performance degradation, reducing long-term costs.
3. Flexible Applications: A wide range of mesh counts and wire diameters, combined with customizable cutting, makes it suitable for various complex industrial needs and specialized applications.
4. Excellent Mechanical Strength: Offers high compressive strength, suitable for use in high-pressure filtration systems, and can be custom-cut into various shapes to fit different equipment installations.

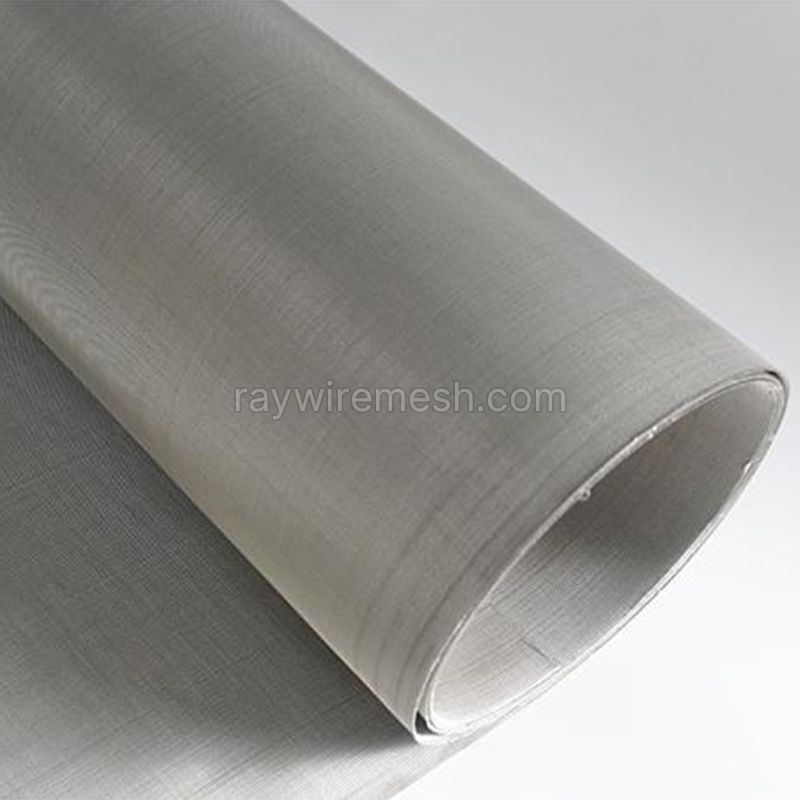

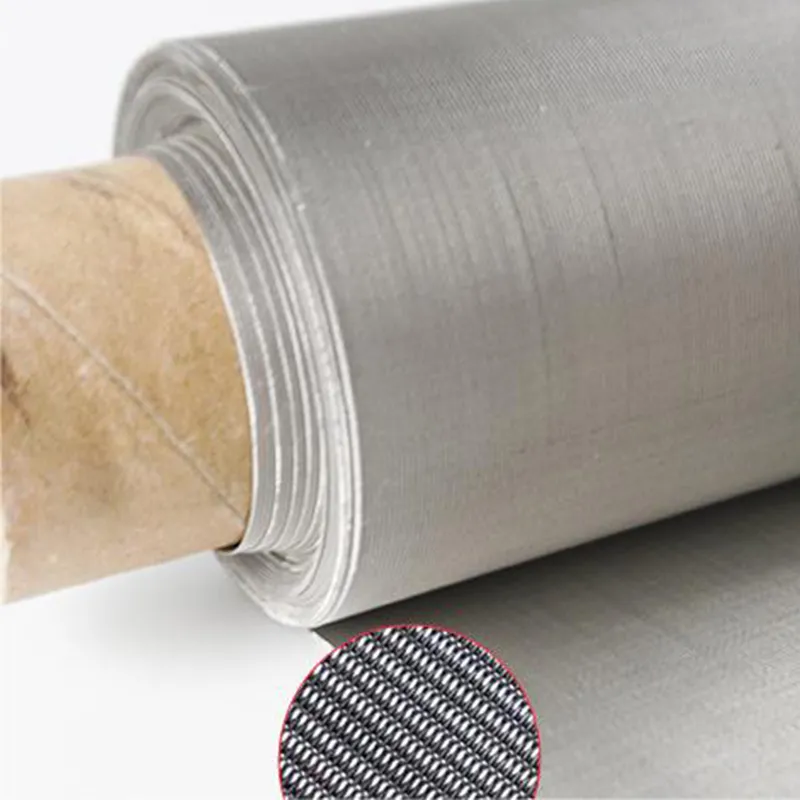

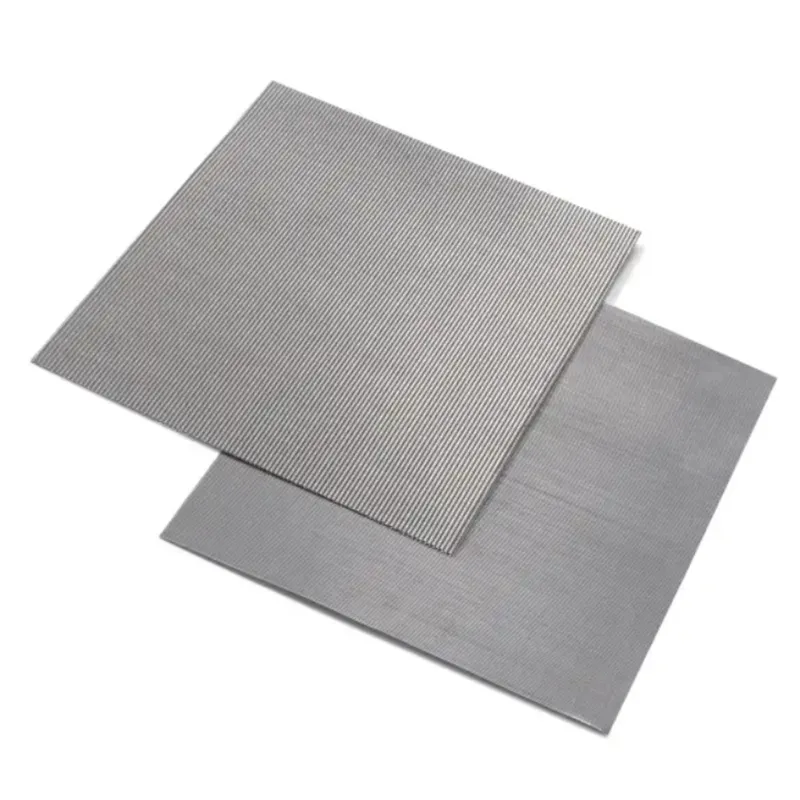

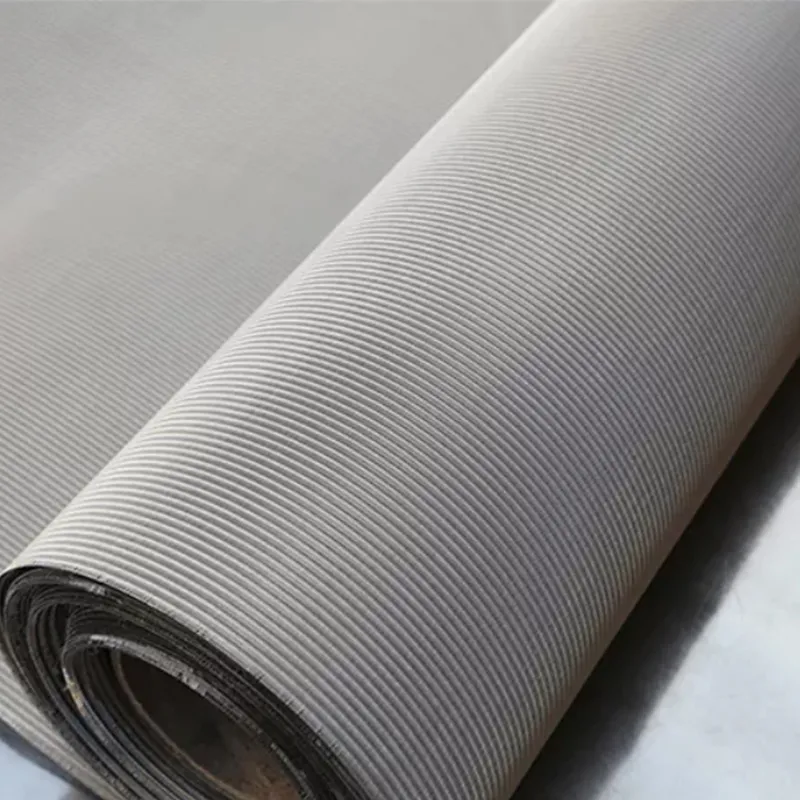

Stainless Steel Dutch Weave Mesh is typically packed in rolls or flat panels, using waterproof and shockproof packaging materials to ensure safe transportation. Custom cutting and special packaging are available based on customer requirements, ensuring that the product is delivered intact.
