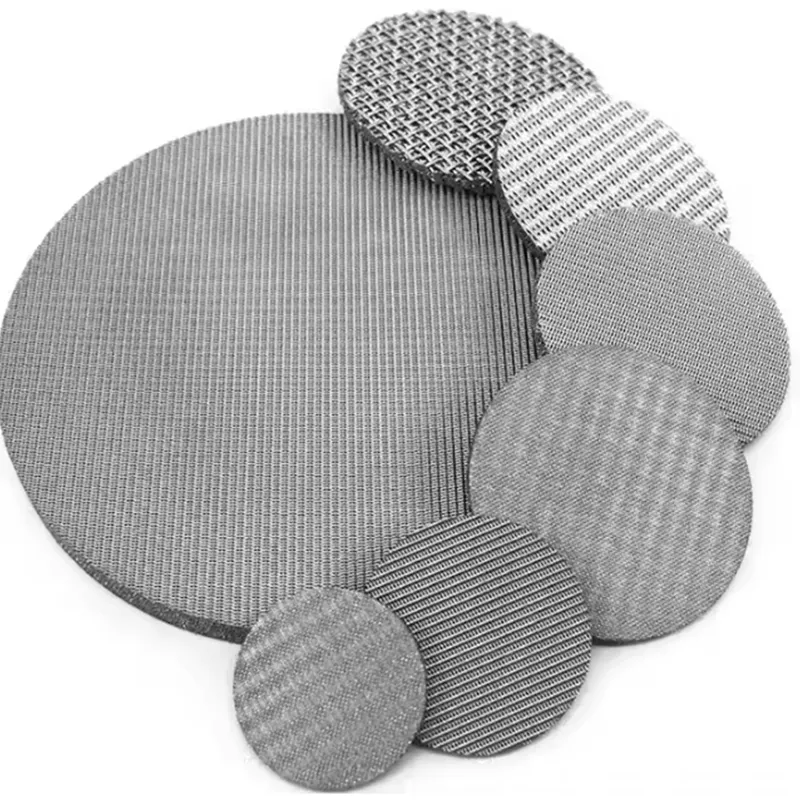

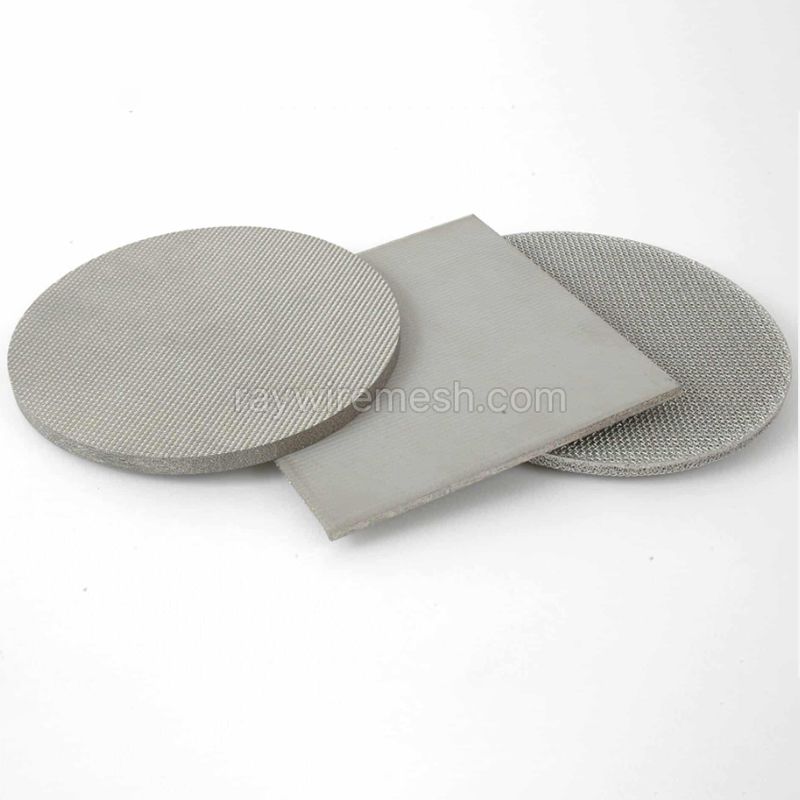

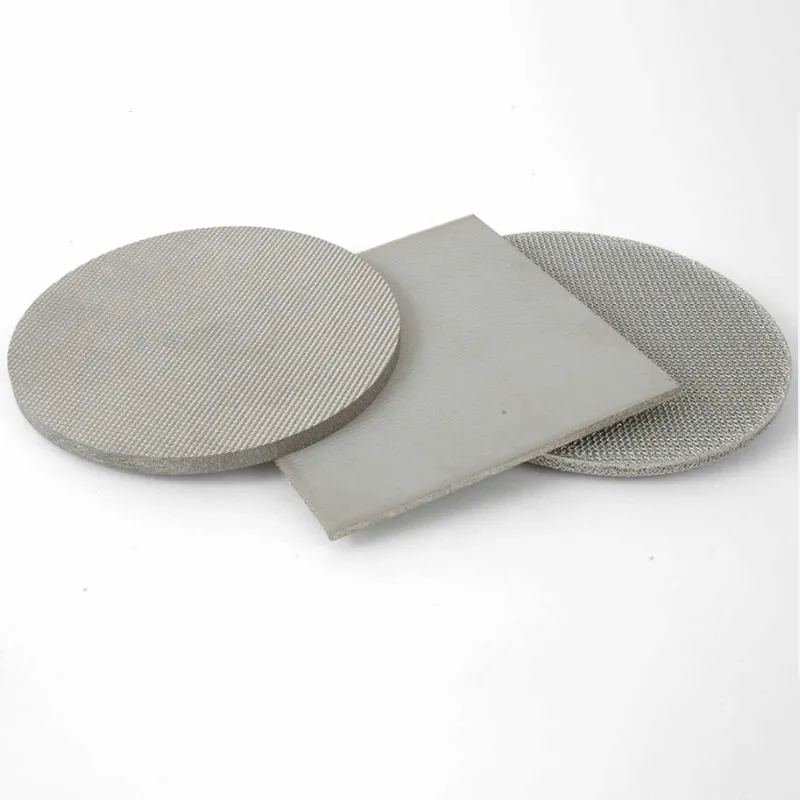

Stainless Steel Sintered Wire Mesh

Stainless Steel Sintered Wire Mesh Key Features Specifications Application Fields Advantages Packaging and Transportation Sintered stainless steel mesh is resistant to Company Advantages FAQ

The sintering process is also a heat treatment operation. If the process air and recirculation are properly controlled, the sintered wire mesh will be smooth, with improved thermal and electrical conductivity, and significantly enhanced formability and ductility, including conformability and wrinkle resistance.

Another major purpose and benefit of the sintering process is to create new structural layers by laminating multiple metal mesh layers together to form various laminated or composite materials. A wide range of new materials with various mechanical properties are generated in this process. Unlike its constituent layers, the whole is more than the sum of its parts. It can better maintain the precision grade of the sintered filter element under pressure and can be repeatedly cleaned. It is suitable for reuse to enhance economic options and has better structural integrity.

Key Features

1. High Mechanical Strength and Stability: The sintering process tightly bonds multiple layers of metal mesh to create a robust and stable structure capable of withstanding high pressures and intense operating conditions.

2. Excellent Filtration Accuracy: The multilayered sintered mesh can provide various filtration precision levels, ranging from microns to millimeters, with typical filtration ratings between 1-200 microns, suitable for precise filtration requirements.

3. High Temperature and Corrosion Resistance: Made from high-quality stainless steel materials (such as SUS304, 316, 316L), the sintered mesh can operate in a wide temperature range from -200°C to 1150°C, and it offers excellent resistance to corrosion.

4. Outstanding Backwash Performance: The sintered mesh has effective surface and depth filtration capabilities, and it is easy to clean via backwashing, allowing for multiple uses, which significantly reduces operational costs.

5. Stable Structure with Low Deformation: The sintered layers make the mesh extremely stable, ensuring it does not deform or dislodge under high-pressure environments, thereby maintaining consistent filtration efficiency over time.

Specifications

Material	SUS304, 316, 316L stainless steel
Number of Layers	Typically 3 to 5 layers, customizable based on application requirements
Thickness	1.7 mm - 6 mm, adjustable according to specific needs
Filtration Precision	1 - 200 microns
Shape and Size	Customizable to customer requirements, available in circular, rectangular, ring, and other specific shapes

Application Fields

1. Oil and Gas: Used for filtering impurities from downhole oil-water mixtures and natural gas, ensuring the safe operation of oil refining equipment.

2. Chemical and Pharmaceutical: Utilized for precision filtration of liquids and gases during chemical reactions and pharmaceutical production, ensuring product purity and quality.

3. Food and Beverage: Used for removing solid impurities from liquids during food processing, such as in milk, juice, syrup, and other precision filtration processes.

4. Water Treatment: Applied in the filtration of industrial wastewater and drinking water, ensuring water quality standards are met and reducing pollutant discharge.

5. Polymer Filtration: Performs excellently in the filtration of high-viscosity materials like plastics and resins, showing superior pressure and temperature resistance, ideal for complex processing needs.

Advantages

1. Durability and Reusability: The robust structure of stainless steel sintered mesh can withstand frequent cleaning and backwashing operations, extending its service life and reducing replacement frequency and costs.

2. High Pressure and Impact Resistance: The multi-layered structure created by sintering can endure high working pressures and impact loads without breaking or deforming.

3. Precise and Stable Pore Distribution: The sintering process ensures uniform pore distribution, guaranteeing consistent and reliable filtration performance, suitable for applications requiring high filtration precision.

4. Easy to Process and Shape: Sintered mesh can be cut, welded, and formed into various sizes and shapes, fitting specific equipment and installation needs.

Packaging and Transportation

Stainless steel sintered wire mesh is typically packaged in wooden crates or pallets to prevent damage during transportation. Waterproof materials and cushioning pads are used to ensure product integrity and quality during transit.

Sintered stainless steel mesh is resistant to

Extremely high temperatures

Heavy mechanical pressure

Oxidation

Hydraulic pressure

Corrosion

Abrasion
