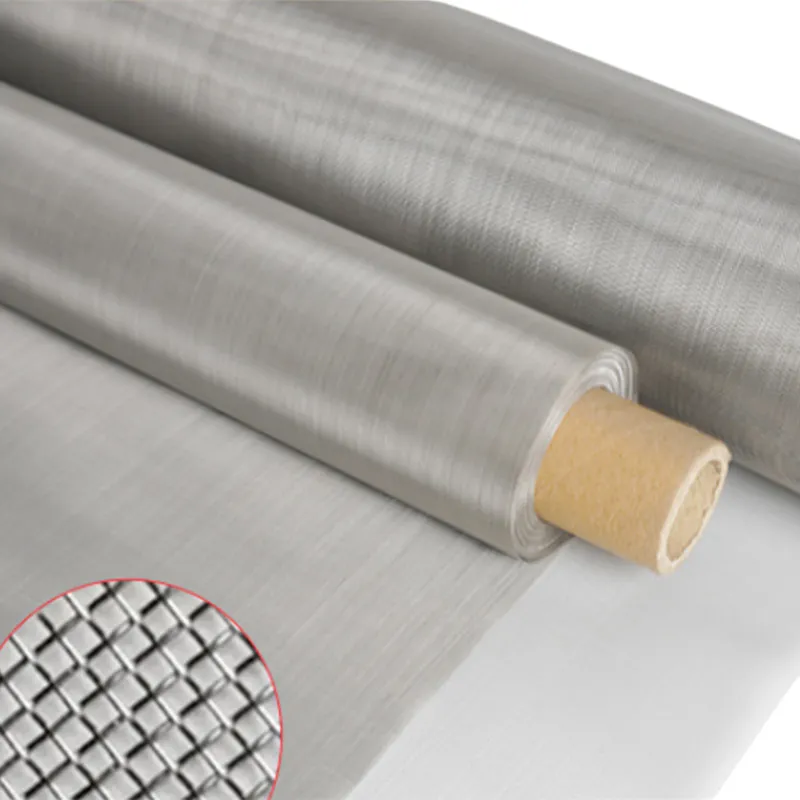

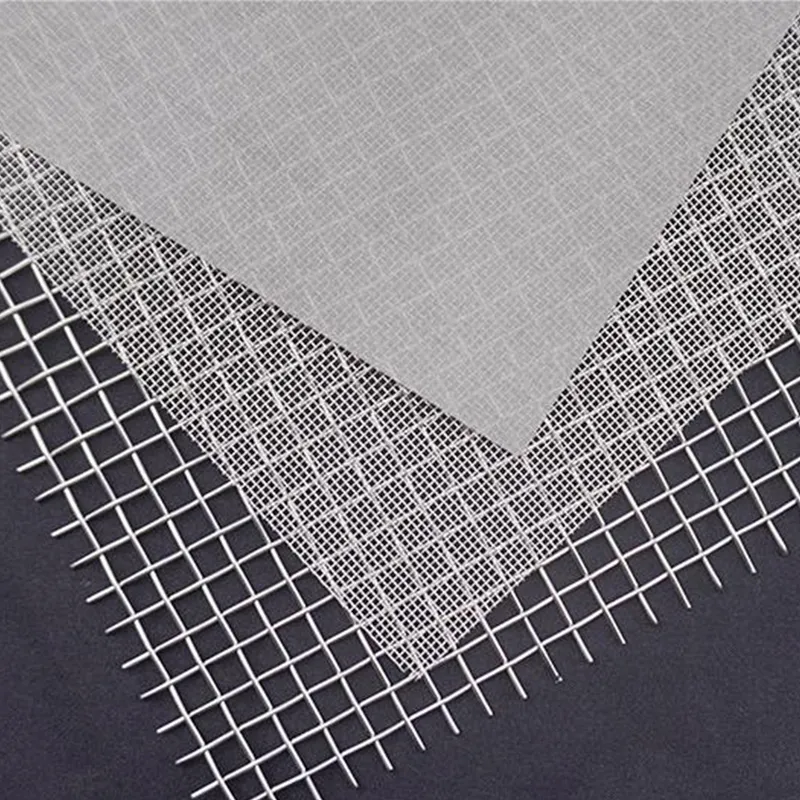

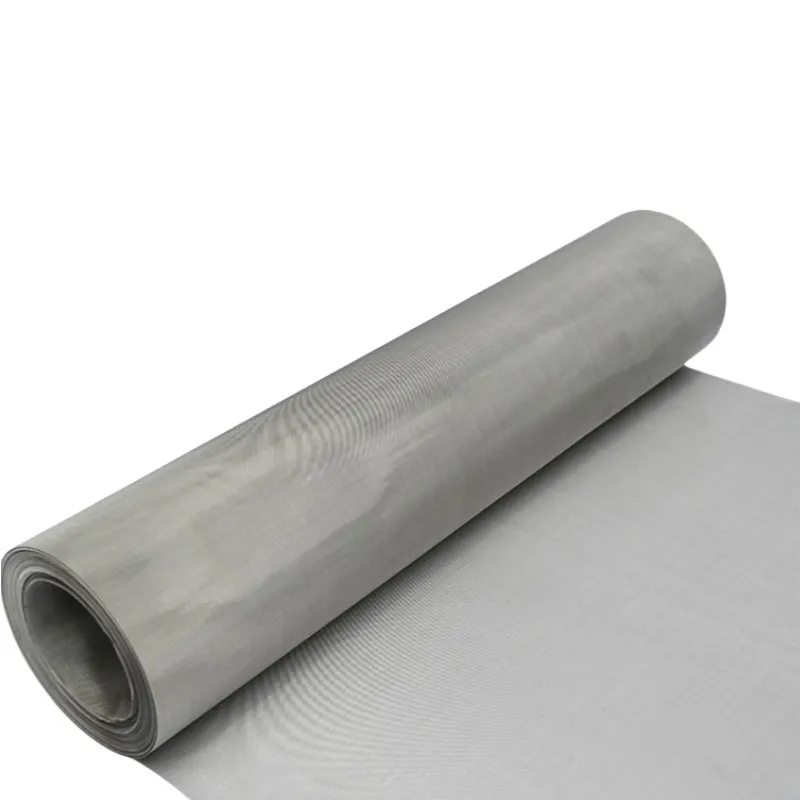

Stainless Steel Woven Wire Mesh

Key Features Specifications Application Fields Advantages Packaging and Transportation Company Advantages FAQ

Key Features

1. Versatile Mesh Count Range: Stainless steel woven wire mesh is available in mesh counts ranging from 1 mesh to 3600 mesh, meeting requirements for both coarse particle screening and ultra-fine filtration.

2. High-Quality Stainless Steel: Made from SUS304, 316, 316L stainless steel, which offers excellent corrosion resistance and is suitable for long-term use in acidic and alkaline environments.

3. High Strength and Durability: The mesh features uniform and tight weaving, providing excellent tensile strength and resistance to wear, capable of withstanding high tensile and compressive forces.

4. Effective Filtration Performance: Different weaving styles make stainless steel woven mesh adaptable for various fluid and particle filtration requirements, achieving high filtration efficiency.

5. Flexible Customization: We provide custom cutting services for different shapes and sizes, including circular, rectangular, and ring shapes, to suit specific industrial equipment and environmental requirements.

6. Weaving TypesPlain Weave: The most common type, where warp and weft wires cross alternately, suitable for low to medium filtration precision.

7. Twill Weave: Warp and weft wires cross in a two-over-two-under pattern, increasing mesh strength, suitable for higher load and finer particle filtration.

8. Dutch Weave: A unique weaving style with different diameters for warp and weft wires, resulting in higher mesh density, perfect for high-precision filtration.

Specifications

Mesh Count Range	1 mesh - 3600 mesh
Wire Diameter Range	0.015 mm - 4 mm
Material	SUS304, 316, 316L stainless steel
Shape & Size	Custom cutting available, including circular, rectangular, ring, and other special shapes as per customer requirements
10 Mesh
Wire Diameter	0.6 mm
Feature	Suitable for coarse particle screening, commonly used in mining and construction industries.
100 Mesh
Wire Diameter	0.3 mm
Feature	Used for medium particle filtration and screening, such as industrial liquid filtration and particle separation.
800 Mesh
Wire Diameter	0.07 mm
Feature	Suitable for finer filtration, ensuring the purity of fluids in chemical and food industries.
1400 Mesh
Wire Diameter	0.04 mm
Feature	For high-precision filtration, ideal for chemical processing and pharmaceutical production.
3600 Mesh
Wire Diameter	0.02 mm
Feature	Ultra-fine filtration, commonly used in pharmaceutical and laboratory precision filtering to ensure high product purity.

Application Fields

1. Industrial Filtration: Suitable for filtering liquids and gases in chemical, petroleum, pharmaceutical industries.

2. Construction Protection: Used for safety barriers, insect screens, and ventilation in construction projects.

3. Food Processing: Applied in the food industry for sieving and removing impurities from materials like flour and sugar to ensure product quality.

4. Mining Screening: Used for separating and screening solid particles in the mineral processing industry.

5. Water Treatment: Utilized in industrial wastewater and domestic water filtration to ensure compliance with quality standards.

6. Laboratory Filtration: Provides precise particle interception for laboratory filtration and testing purposes.

Advantages

1. High Temperature and Corrosion Resistance: Performs well in high temperatures and corrosive environments, suitable for harsh industrial conditions.

2. Easy to Clean and Durable: Stainless steel material is easy to clean and can be reused multiple times without performance degradation, reducing long-term costs.

3. Excellent Strength and Flexibility: Offers good mechanical strength and certain flexibility, making it adaptable for installation in various industrial equipment and complex environments.

4. Various Weaving Styles for Different Needs: Depending on the weaving type and specifications, stainless steel woven mesh can meet a wide range of requirements, from coarse screening to precision filtration.

Packaging and Transportation

Stainless steel woven wire mesh is typically packed in rolls or flat panels, using waterproof and shockproof materials to ensure the integrity and quality during transportation. We also offer custom packaging services to meet special transportation requirements.

Company Advantages

Robust Infrastructure

Hebei Ruiyun Wire Mesh Technology Co., Ltd. owns modern production equipment and advanced production processes. The company covers an area of 30,000 square meters and is equipped with over 180 fully automated production lines, including cutting machines, drawing machines, weaving machines, and welding equipment. With an annual production capacity of over 120,000 square meters, we efficiently meet the demands of large orders. The company has fixed assets of RMB 35 million, ensuring our leading position in the industry.

Frequently Asked Questions (FAQ)

Q:Are you close to the port?

Yes, our company is advantageously located near Tianjin Port, one of the world's largest ports. This geographical advantage allows us to quickly and efficiently ship products to customers worldwide. Whether by sea or air, we can provide fast and reliable logistics services to ensure your products are delivered safely and on time.

Q:What is your delivery time?

Our delivery time is highly flexible and can be adjusted based on stock availability and order requirements. If the product you order is in stock, we typically ship within 2 days. For custom orders, the delivery time varies based on the complexity and quantity of the order, usually ranging from 7 to 30 days. We will make every effort to complete your order as quickly as possible and ensure timely delivery.

Q:Are you a manufacturer?

Yes, we are a professional manufacturer specializing in the production of foam nickel, nickel wire mesh, nickel felt, stainless steel wire mesh, and other metal mesh products. Our production facilities are equipped with world-class equipment and technology, strictly adhering to ISO standards to ensure that every product meets the highest quality requirements. We also have a dedicated R&D team committed to product innovation and technology improvement to meet the evolving market demands.

Q:What is the minimum order quantity?

Our minimum order quantity is very flexible, accommodating orders of all sizes. Whether you need small custom pieces starting from 200x300mm or large bulk orders, we can fulfill your needs. Our production system and inventory management effectively support efficient delivery for different orders.

Q:Can you provide custom sizes or shapes?

Absolutely! We support customization based on the specific needs of our customers. In addition to standard rectangular and square nickel wire mesh, we can customize various shapes, including round, oval, diamond, and other irregular shapes. We can also perform punching, cutting, and other special treatments according to your design requirements to ensure the product perfectly meets your application needs. We are also happy to provide samples for your evaluation to ensure your satisfaction with the final product.
