Titanium Expanded Metal Mesh

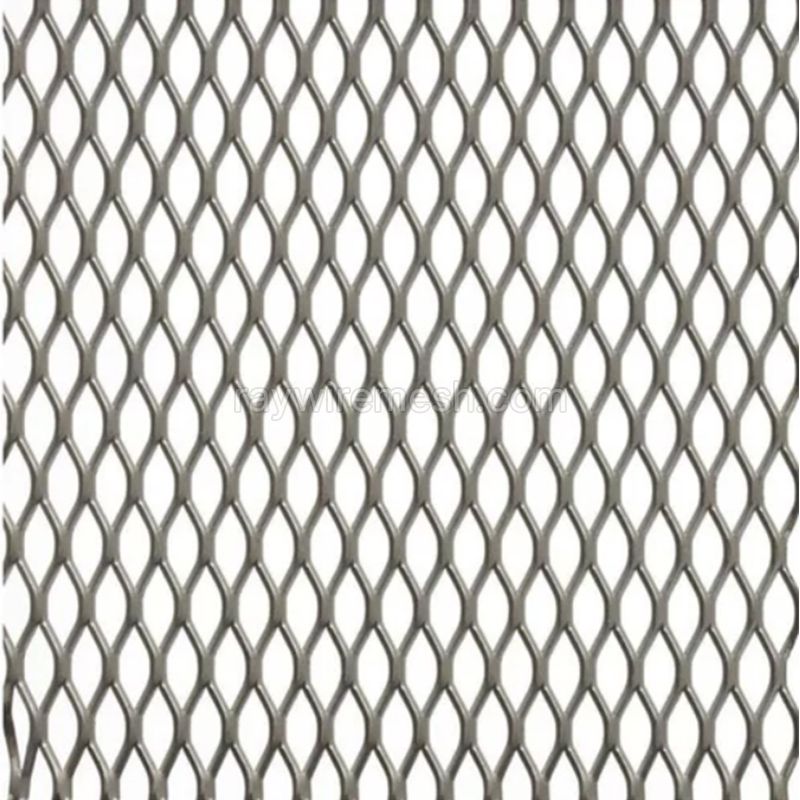

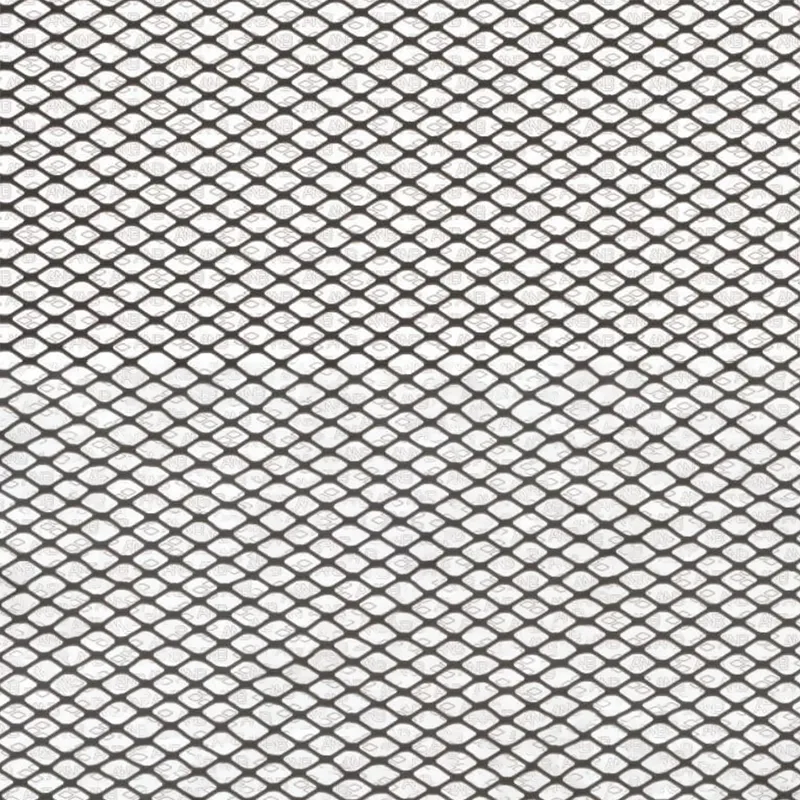

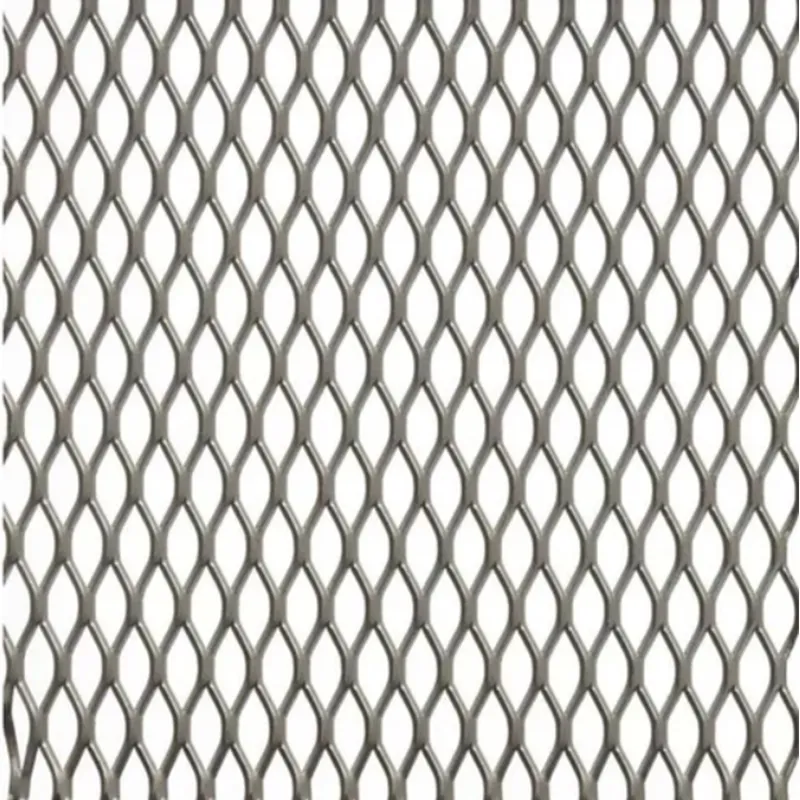

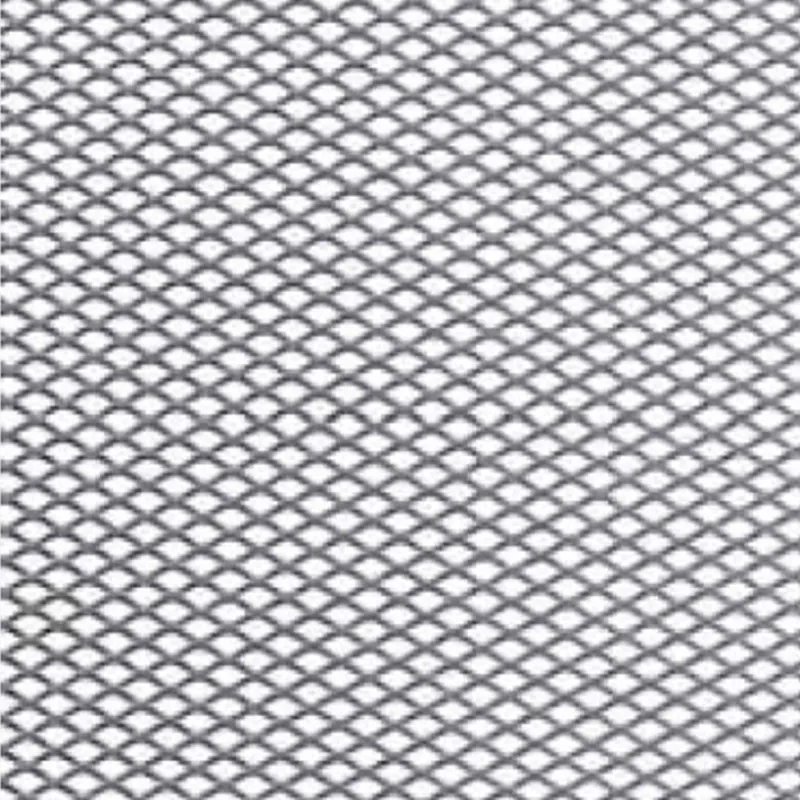

Titanium expanded metal mesh, also known as expanded titanium mesh, is crafted from titanium sheets or rolls. It undergoes a process of cutting and stretching through an automatic expanding machine, resulting in a metal mesh with uniform diamond-shaped apertures. Due to its excellent resistance to acids and alkalis, titanium expanded metal mesh is often utilized in chemical filtration and as electrodes for chlorine extraction.

Aperture shapes: Diamond, Hexagonal

Surface types: Raised or Flat

We offer a variety of titanium expanded metal mesh types and can also customize according to your specific requirements.

Key Features

1. Exceptional Corrosion Resistance: Titanium mesh is highly resistant to corrosion in acidic, alkaline, and saline environments, making it suitable for harsh conditions in chemical and marine industries.

2. High Strength and Low Density: Titanium has a density that is only half of stainless steel but offers comparable or even greater strength, making titanium mesh an ideal lightweight material for aerospace and other industries that require high strength with reduced weight.

3. Excellent High-Temperature Performance: Titanium can remain stable across a wide temperature range from -200°C to 800°C, making it ideal for high-temperature environments.

4. Unique Mesh Structure: Produced through a cutting and expanding process, titanium mesh has diamond or hexagonal apertures, providing excellent permeability and fluid flow properties, which are ideal for filtration and screening applications.

5. High Biocompatibility: Titanium mesh is non-toxic and biocompatible, making it suitable for medical uses, including implants and surgical instruments.

Specifications

Material	Pure titanium (TA1, TA2) or titanium alloy
Thickness Range	0.5 mm - 5 mm, customizable according to customer needs
Aperture Size	3 mm - 50 mm, available in diamond or hexagonal shapes
Width	0.5 m - 2 m, customizable according to customer requirements
Surface Treatment	Polishing, pickling, or coating, depending on requirements, to enhance corrosion resistance and appearance

Application Fields

1. Chemical Processing: Titanium mesh is used for filtering and separating corrosive media such as acids and alkalis, commonly used in reactors, towers, and filtration systems in chemical plants.

2. Marine Engineering: Due to its excellent resistance to seawater corrosion, titanium mesh is used for the protection of marine equipment and structures, especially in seawater filtration and reinforcement of marine equipment.

3. Aerospace: With its lightweight and high strength, titanium mesh is used extensively in aircraft structures, air filters, and structural reinforcement, contributing to improved fuel efficiency and reduced overall weight.

4. Medical Equipment: The biocompatibility of titanium makes it suitable for use in orthopedic implants, surgical instruments, and rehabilitation devices, ensuring safety and reliability for medical use.

5. Environmental Treatment: Titanium mesh is used in industrial wastewater treatment, air filtration, and other environmental protection projects. Its porous structure enhances filtration efficiency and longevity.

6. Hydrogen Production Systems: Titanium mesh is used as an electrode material in water electrolysis for hydrogen production. Its high conductivity and corrosion resistance improve the efficiency of electrolysis and the lifespan of hydrogen production equipment.

Advantages

· Outstanding Corrosion Resistance: Titanium performs exceptionally well in various corrosive environments, making titanium mesh ideal for long-term use in chemical, marine, and electrochemical applications.

· High Strength and Lightweight: Titanium mesh offers a combination of high strength and low weight, ideal for applications requiring rigorous strength and weight control, such as in aerospace.

· High-Temperature Stability: Titanium maintains excellent physical and chemical properties under extreme temperatures, making it suitable for high-temperature applications.

· Flexible Mesh Design: The apertures formed through cutting and expanding can be adjusted according to different application requirements, meeting diverse filtration and support needs.

Packaging and Transportation

Titanium mesh is typically packaged in roll or sheet form, with waterproof and shock-resistant materials used for protection during transport. Custom packaging solutions are also available to ensure the product remains intact during transportation and storage.

Company Advantages

Robust Infrastructure

Hebei Ruiyun Wire Mesh Technology Co., Ltd. owns modern production equipment and advanced production processes. The company covers an area of 30,000 square meters and is equipped with over 180 fully automated production lines, including cutting machines, drawing machines, weaving machines, and welding equipment. With an annual production capacity of over 120,000 square meters, we efficiently meet the demands of large orders. The company has fixed assets of RMB 35 million, ensuring our leading position in the industry.

Frequently Asked Questions (FAQ)

Q:Are you close to the port?

Yes, our company is advantageously located near Tianjin Port, one of the world's largest ports. This geographical advantage allows us to quickly and efficiently ship products to customers worldwide. Whether by sea or air, we can provide fast and reliable logistics services to ensure your products are delivered safely and on time.

Q:What is your delivery time?

Our delivery time is highly flexible and can be adjusted based on stock availability and order requirements. If the product you order is in stock, we typically ship within 2 days. For custom orders, the delivery time varies based on the complexity and quantity of the order, usually ranging from 7 to 30 days. We will make every effort to complete your order as quickly as possible and ensure timely delivery.

Q:Are you a manufacturer?

Yes, we are a professional manufacturer specializing in the production of foam nickel, nickel wire mesh, nickel felt, stainless steel wire mesh, and other metal mesh products. Our production facilities are equipped with world-class equipment and technology, strictly adhering to ISO standards to ensure that every product meets the highest quality requirements. We also have a dedicated R&D team committed to product innovation and technology improvement to meet the evolving market demands.

Q:What is the minimum order quantity?

Our minimum order quantity is very flexible, accommodating orders of all sizes. Whether you need small custom pieces starting from 200x300mm or large bulk orders, we can fulfill your needs. Our production system and inventory management effectively support efficient delivery for different orders.

Q:Can you provide custom sizes or shapes?

Absolutely! We support customization based on the specific needs of our customers. In addition to standard rectangular and square nickel wire mesh, we can customize various shapes, including round, oval, diamond, and other irregular shapes. We can also perform punching, cutting, and other special treatments according to your design requirements to ensure the product perfectly meets your application needs. We are also happy to provide samples for your evaluation to ensure your satisfaction with the final product.

Q:What grade of titanium material do you use?

We use high-purity titanium materials, including Gr1 and Gr2 titanium, which ensure excellent corrosion resistance, strength, and durability. These materials are widely used in the production of titanium wire mesh, titanium felt, and other specialized titanium products.
