Titanium Mesh

Titanium mesh is a high-performance material known for its exceptional corrosion resistance, lightweight properties, and high strength. It is widely used in industries such as chemical processing, aerospace, medical, marine engineering, and filtration. Made from pure titanium (Grade 1, Grade 2) or titanium alloys (Grade 5, Ti-6Al-4V), it offers excellent mechanical properties, oxidation resistance, and biocompatibility.

Key Features:

1. Outstanding Corrosion Resistance

• Naturally forms a dense oxide layer, making it highly resistant to acids, alkalis, and seawater.

2. High Strength-to-Weight Ratio

• Lighter than steel but with excellent strength, ensuring durability while reducing structural weight.

3. Excellent Thermal and Electrical Conductivity

• Stable under extreme temperatures and electrochemical conditions.

4. Superior Biocompatibility

• Non-toxic, non-allergenic, widely used in medical implants and surgical devices.

5. Customizable Specifications

• Available in various mesh sizes, thicknesses, and weaves to meet specific application needs.

Specifications:

• Material: Pure titanium (Gr1, Gr2), Titanium alloy (Gr5, Ti-6Al-4V)

• Mesh Size: 1–500 mesh (customizable)

• Wire Diameter: 0.05–2.0 mm

• Thickness: 0.1–5 mm

• Aperture Size: 0.1–10 mm

• Width & Length: Up to 2000 mm width, customizable length

Applications:

• Chemical & Marine Industries: Corrosion-resistant filtration and separation.

• Aerospace & Defense: Lightweight structural components.

• Medical & Healthcare: Surgical implants, bone scaffolds.

• Electrochemical Applications: Electrolysis anodes, fuel cells.

• Filtration & Separation: Gas and liquid filtration in industrial processes.

1. Chemical Processing: Titanium mesh is widely used for filtering and separating corrosive media such as acids and alkalis, suitable for use in chemical reactors, heat exchangers, and filtration systems.

2. Marine Engineering: With its superior resistance to seawater corrosion, titanium mesh is used in marine filtration, marine instrument protection, and reinforcement of marine structures.

3. Aerospace: The high strength and low weight of titanium mesh make it ideal for components, filters, and reinforcement structures in aircraft, effectively reducing weight and improving fuel efficiency.

4. Medical Devices: Titanium’s biocompatibility makes it suitable for use in surgical instruments, orthopedic implants, and dental applications, ensuring safety and stability for medical use.

5. Electrochemical Applications: Titanium mesh is used as an electrode material in the electrochemical industry, particularly in chlor-alkali production, electroplating, and electrolysis processes.

6. Hydrogen Production: Titanium mesh is used as an electrode in water electrolysis for hydrogen production. Its high resistance to corrosion and superior conductivity contribute to efficient hydrogen generation, making it an ideal material for renewable energy systems.

7. Environmental Treatment: Titanium mesh is ideal for water treatment and air filtration due to its corrosion resistance and high strength, providing a long-lasting and high-performance filtration solution.

· Exceptional Corrosion Resistance: Titanium is highly resistant to corrosion in harsh environments, making titanium mesh widely applicable in chemical and marine industries.

· Lightweight and High Strength: Titanium mesh offers both high strength and low weight, making it an ideal replacement for traditional metal meshes, especially in industries where weight reduction is crucial.

· High and Low-Temperature Resistance: Titanium maintains stability in extreme temperatures, making it suitable for specialized industrial applications.

· Biocompatibility: The safety and biocompatibility of titanium make it suitable for medical applications, providing reliable performance without adverse reactions.

· Customizable and Versatile: Available in multiple weaving types and aperture sizes, titanium mesh can be tailored to meet the specific needs of different clients.

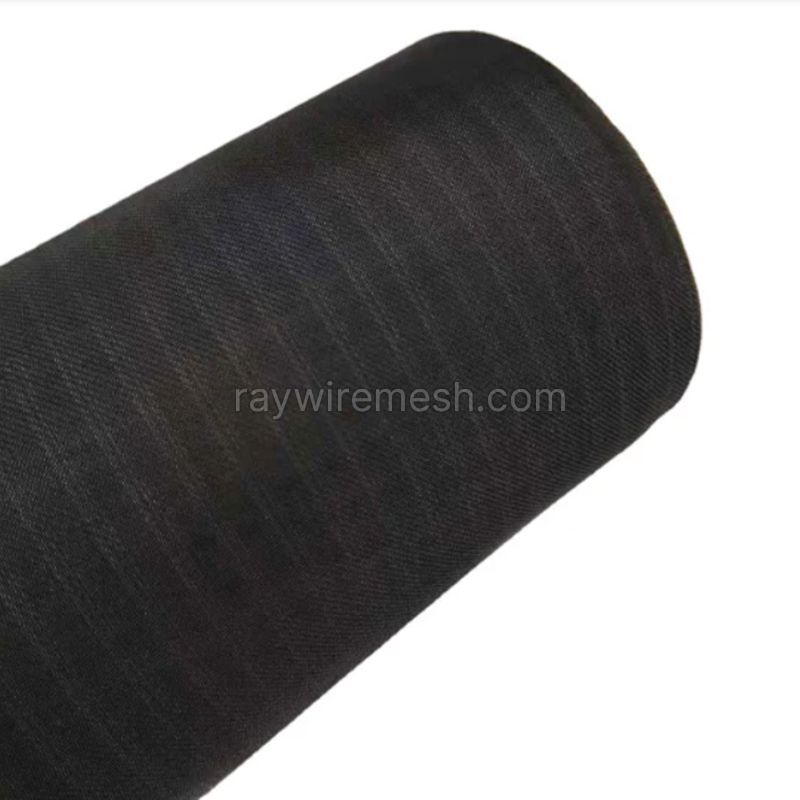

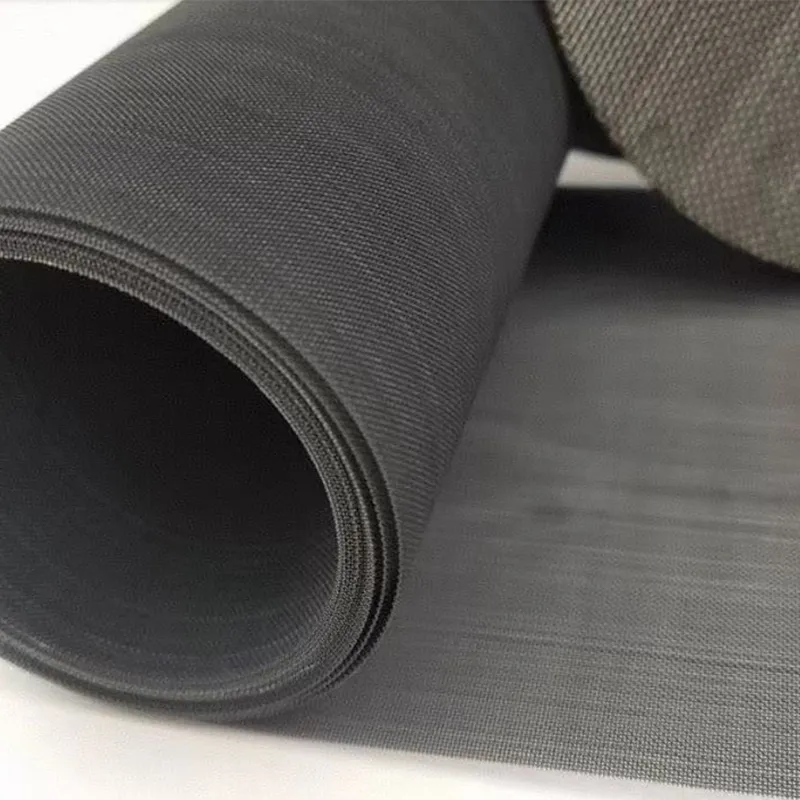

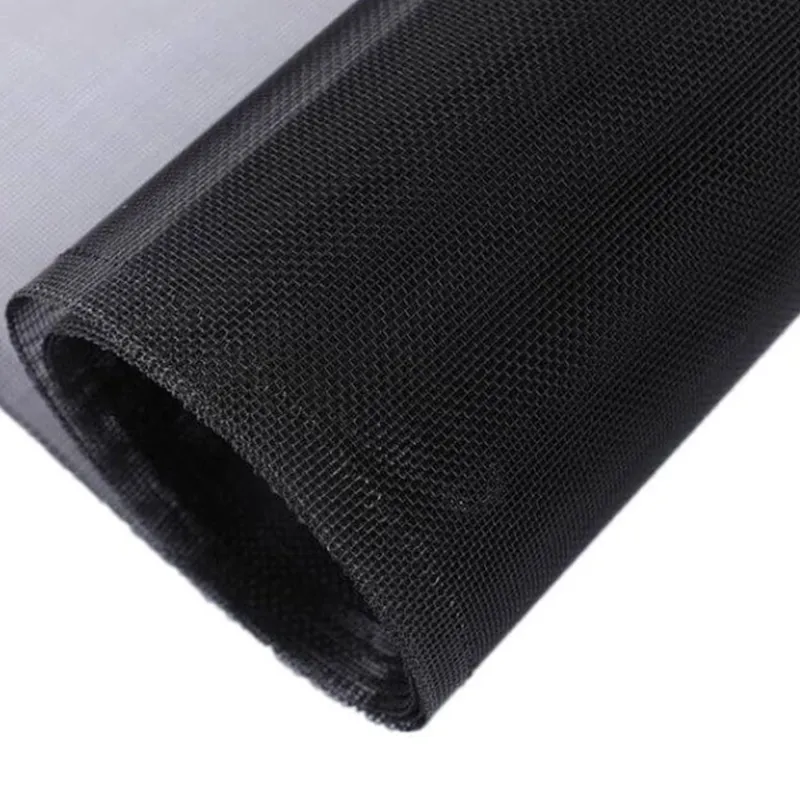

Titanium mesh is typically packed in rolls or sheets, with protective moisture-resistant materials used to ensure the product remains undamaged during transportation. We also offer custom packaging solutions to ensure safe delivery based on customer requirements.
